ATOM 250 Hyundai 2.5 Ton 24 Meters
WE ARE ONE! Satisfaction of Faith, Zitton Group is one with our customers.

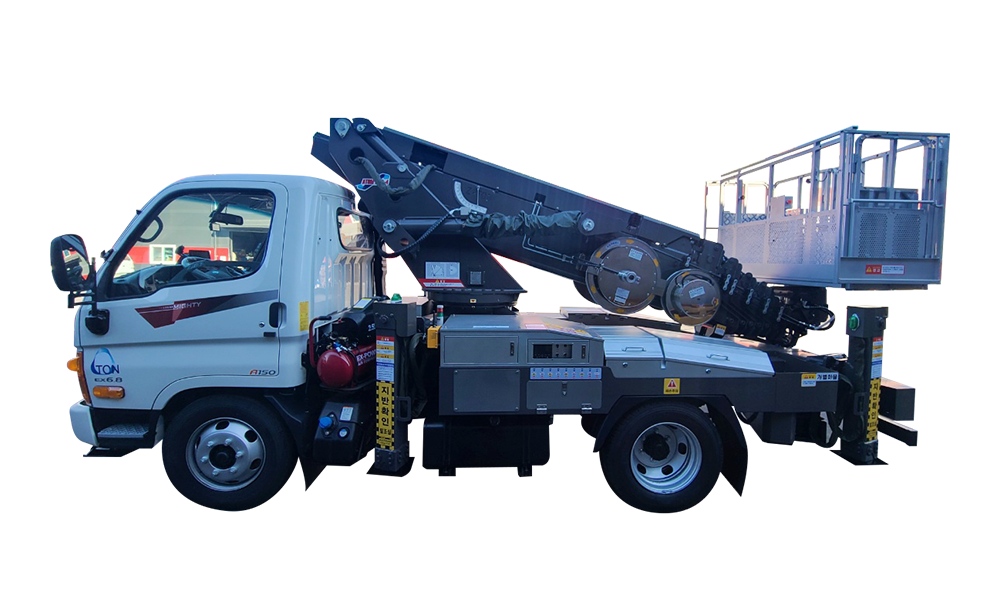

Product picture
Equipment description
It is the best equipment that reflects customer's NEEDS with optimized equipment for the city.
It is designed and manufactured to handle any work required in the urban area. Winches, inverters and expandable aluminum cabins make your work easier.
- The best workability and the highest work height are realized by overcoming the limit of 2.5 tons
- Up to 25 meters of work is possible thanks to the design technology with the export know-how of developed countries
- Maximum working radius by applying front and rear X-shaped outriggers
- 400KG rated load, minimizing boom deflection even with 19 meters rear
- No outrigger torsion and bending during maximum side work
(All specifications are outrigger maximum withdrawal conditions)
video
Key Features ※ The following specifications are subject to change without prior notice for performance improvement.

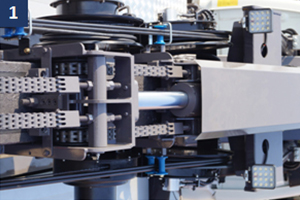

Securing stability by applying boom in / out pull chain method

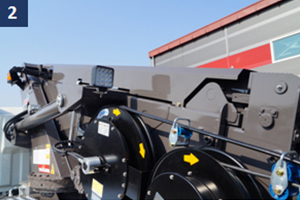

Boom 7-speed linked out

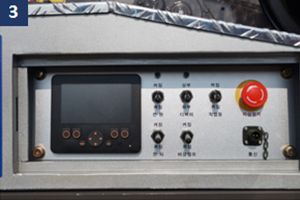

Apply digital control box, display as image height / load

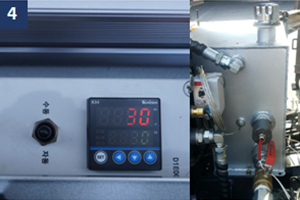

Automatic hydraulic heating system, winter oil preheating function

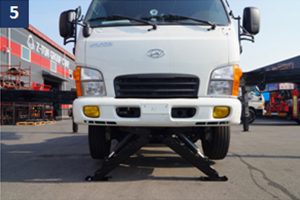

Secure work stability by installing the front outrigger

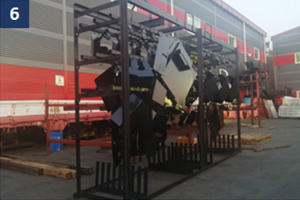

Improved coating quality by introducing electrodeposition coating

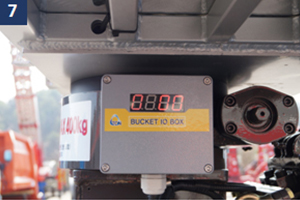

Application of board load digital indicator

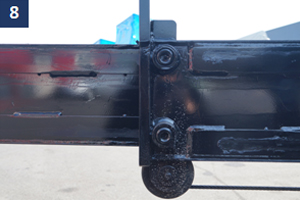

with outrigger side adjustment pad, adjustable outrigger play

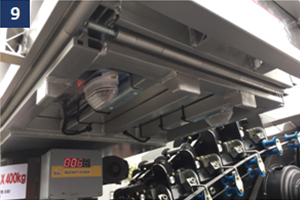

Installation of boarding level indicator light, adjustable level of boarding

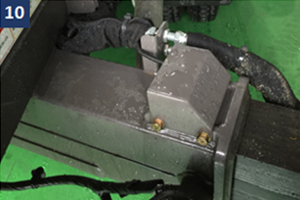

Outrigger length sensor applied, outrigger length interlocking operation control

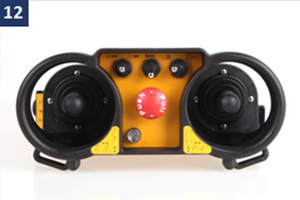

Hetronic wireless joystick type remote control

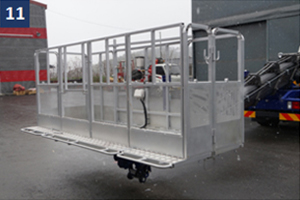

Bucket (New Signbosrd type Full Aluminium)
Basic type
Extended type
Specification Table ※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Unit | Specification | ||
|---|---|---|---|---|
| Model name | - | ATOM 250-8 | ||
| Applicable Vehicle | ton | Hyundai Might Cutie 2.5 Ton | ||

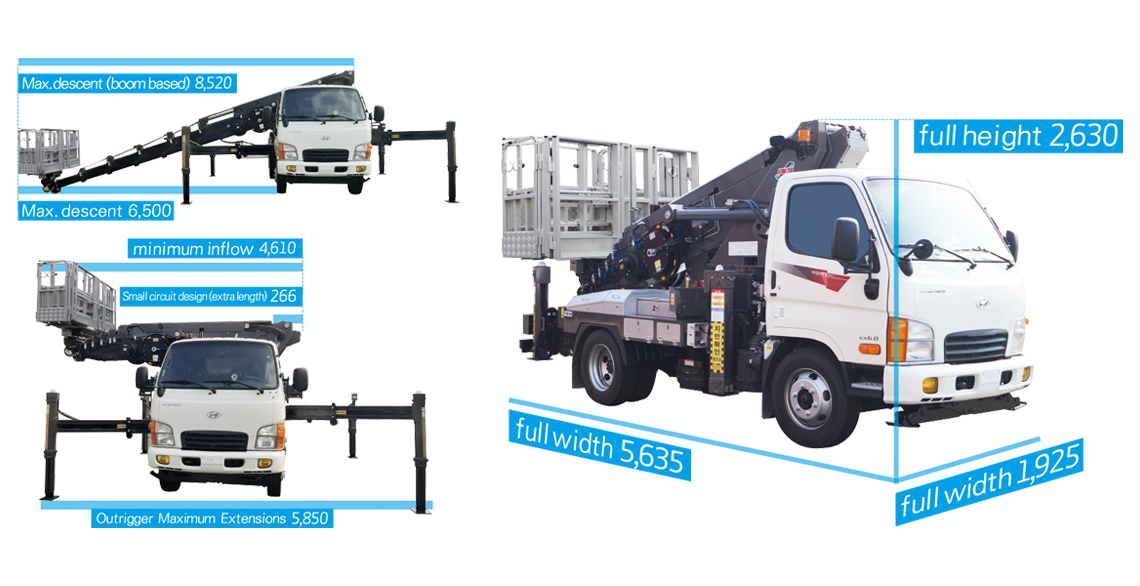

| Body size (L x W x H) | mm | 5,635 x 1,925 x 2,650 (mm) | ||
| Working height | m | 24 m | ||
| Working radius | m | 19 m (100kg) | ||
| Boom | Form | - | 7-speed hexagonal High Tensile Steel Boom | |
| Withdrawal Method | - | 1 Hydraulic Cylinder 6-stage Chain Linkage | ||
| Boom | Driving method | - | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | ° | 360° finite rotation | ||
| Bucket | Material | - | Aluminum | |
| Size (LxWxH) | mm | 794 X 1,762 X 1,105 (mm) (External reference when expanded) | ||
| Rotation angle | ° | 360° | ||
| Rotation method | - | Hydraulic Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance method | - | Hydraulic cylinder driven automatic horizontal system | ||
| Load | kg | Max 400kg (2 workers + tool) | ||
| Outrigger | Main | Form | - | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | mm | 5,830 (mm) | ||
| After room | Form | - | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | mm | 5,830 (mm) | ||
| Type of working flow | - | ISO VG #46 | ||
| Safety device | - | Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device |
||
| Basic specification | - | Wireless Remote Control, Work Light, Hydraulic Emergency Pump, Main-Rear Outrigger, PTO, Aluminum boarding, remote start / stop, RPM remote accelerator, inverter, Hydraulic oil heating device |
||

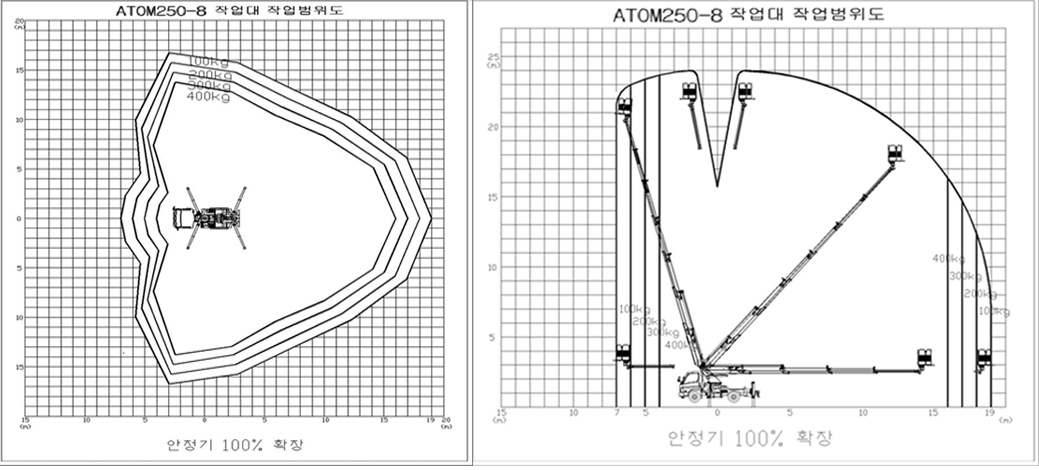

Working radius ※ The above specifications are subject to change without prior notice.
