ATOM 240LATOM 240L Kia 2.5Ton 24Meters
WE ARE ONE! Satisfaction of Faith, Zitton Group is one with our customers

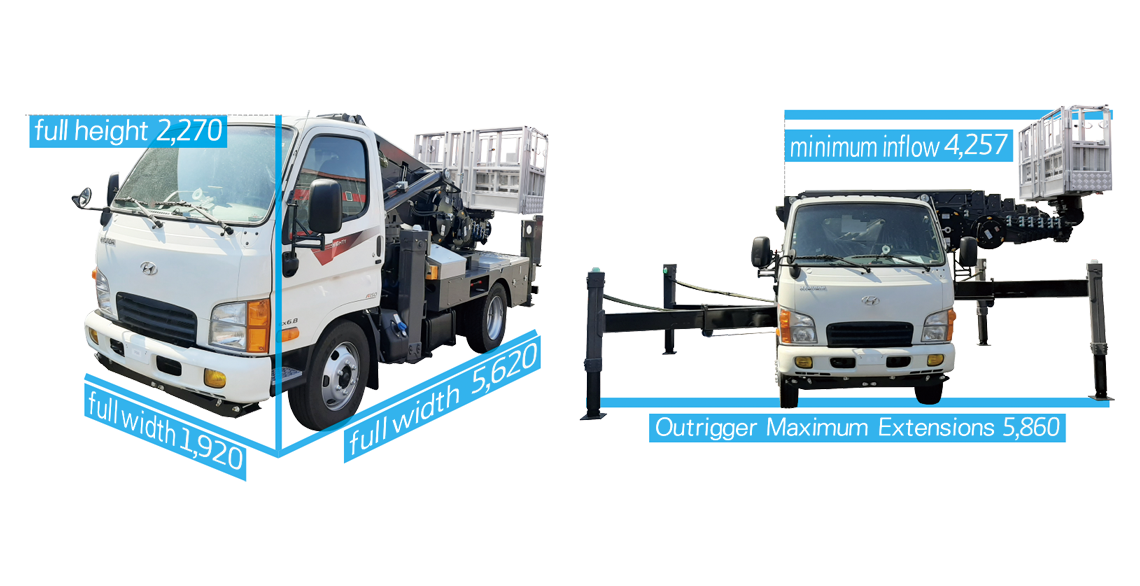

Product picture
Equipment description
It is the best equipment that reflects customer's NEEDS with optimized equipment for the city.
It is designed and manufactured to handle any work required in the urban area.
inverters and expandable aluminum cabins make your work easier.
- 2.5ton highest working capacity, low profile model capable of passing 2.3 meters
- Up to 18 meters of work can be done with design technology concentrated on export know-how of developed countries
- Maximum working radius by applying front and rear X-shaped outriggers
- KG 400KG certified load rating, minimizing boom deflection during maximum rear work
- No outrigger torsion and bending during maximum side work (All specifications are outrigger maximum withdrawal conditions)
video
Key Features ※ The following specifications are subject to change without prior notice for performance improvement.
1
2.3미터 통과 가능한 저상형 장비
2
소선회형 설계
3
디지털 방식 컨트롤 박스 적용
4
작동유 자동 히팅 시스템
5
차체 메인 서브 프레임 보강
6
전착도장 도입으로 도장 품질 향상
7
붐 인입/인출 체인 방식
8
텔레실린더 로드 보호 커버

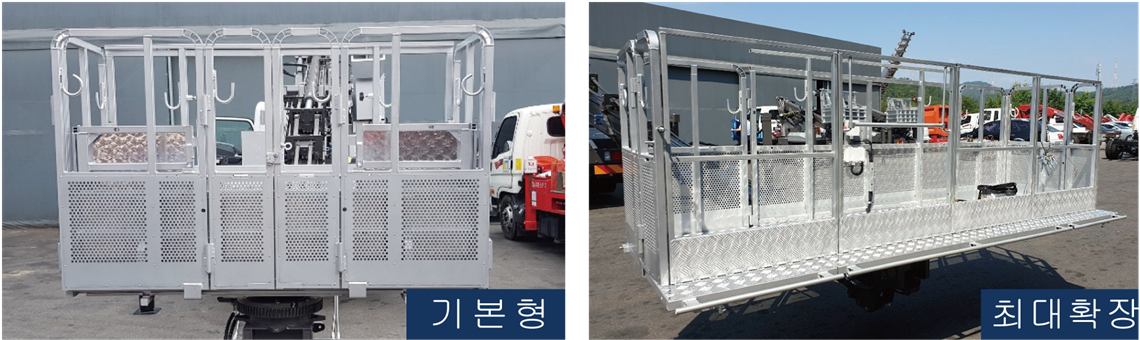

Bucket (New Signbosrd type Full Aluminium)
Basic type
Extended type
Specification Table ※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Specification | ||
|---|---|---|---|
| model name | ATOM 240L-4 | ||
| Applicable Vehicle | Hyundai Might Cutie 2.5 Ton | ||
| Body size (L x W x H) | 5,625 x 1,920 x 2,540 (mm) | ||
| Working height | 23 m | ||
| Working radius | 18 m (100kg) | ||
| Boom | form | 8-speed hexagonal High Tensile Steel Boom | |
| Withdrawal Method | 1 hydraulic cylinder 7-stage chain linkage | ||
| Boom turn | Driving method | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | 360º finite rotation | ||
| Bucket | material | aluminum | |
| Size (L x W x H) | 794 X 1,762 X 1,105 (mm) (External reference when expanded) | ||
| Rotation angle | 360° | ||
| Rotation method | Electric Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance | Hydraulic cylinder driven automatic horizontal system | ||
| Load | Max 400kg (2 workers + tool) | ||
| Outrigger | main | form | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | 5,860 (mm) | ||
| After room | form | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | 5,860 (mm) | ||
| Type of working flow | ISO VG #46 | ||
| safety device |
Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device |
||
| Basic specification |
Wireless Remote Control, Work Light, Hydraulic Emergency Main-Rear Outrigger, PTO, remote start / stop, RPM remote accelerator, Boom Home Positioning, inverter |
||
Working radius ※ The above specifications are subject to change without prior notice.
Product Specification
Working picture
