ATOM 290DTATA DAEWOO Commericial vehicle the cen 4ton
WE ARE ONE! Satisfaction of Faith, Zitton Group is one with our customers.

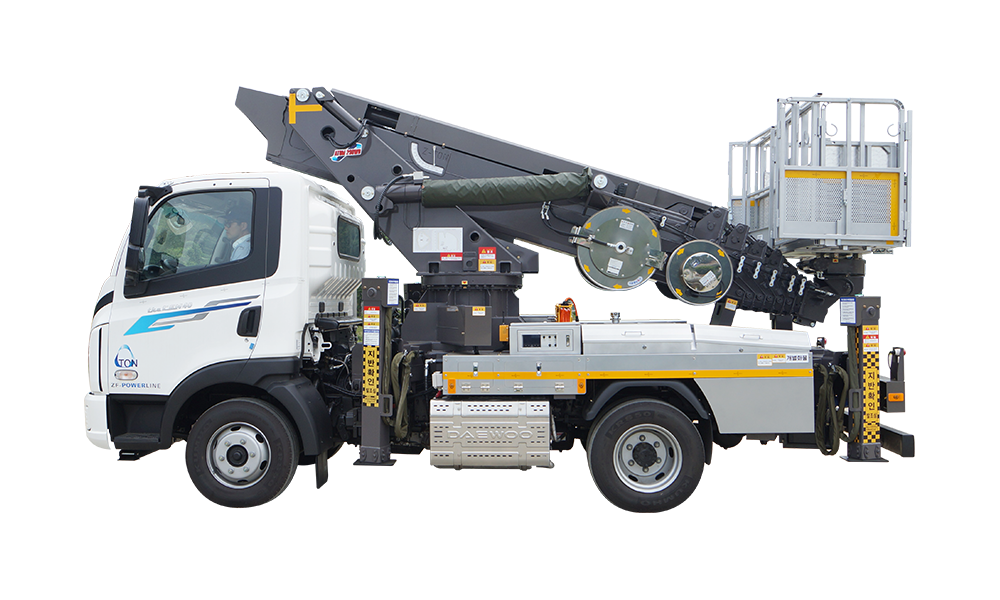

Product picture
Equipment description
Maximum working height of 28.3M exceeded the limit of 4tons.
It is designed and built to handle any work required in urban areas.
You can work more conveniently by applying an expandable aluminum boarding box.
- 4ton highest working capacity
- Maximum working radius by applying front and rear X-shaped outriggers
- KG 400KG certified load rating, minimizing boom deflection during maximum rear work
- No outrigger torsion and bending during maximum side work(All specifications are outrigger maximum withdrawal conditions)
- Improve fuel economy, reduce vehicle maintenance costs, maximize engine performance with excellent pitching capability! (ZF 8 speed automatic transmission)
Key Features ※ The following specifications are subject to change without prior notice for performance improvement.

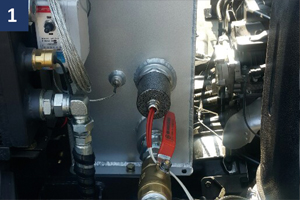

Automatic hydraulic heating system, winter oil preheating function

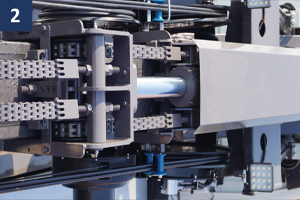

Securing stability by applying boom in/out pull chain method

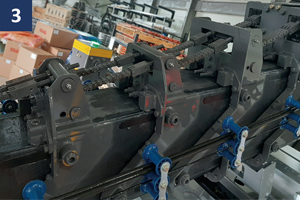

Boom 7-speed linked out

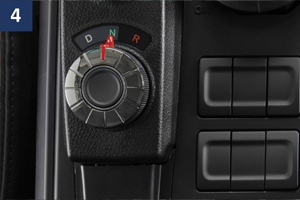

Automatic Transmission Controller

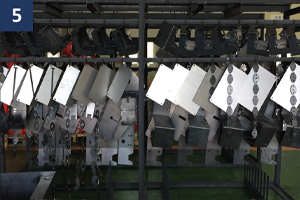

Improved coating quality by introducing electrodeposition coating

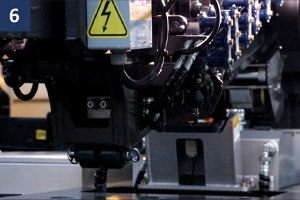

Boom automatic containment system (Automaic origin return system
Bucket (New Signbosrd type Full Aluminium)
Basic type
Extended type
Specification Table ※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Specification | ||
|---|---|---|---|
| model name | ATOM 290D | ||
| Applicable Vehicle | TATA DAEWOO Commercial vehicle the cen 4ton | ||
| Body size (L x W x H) | 6025 x 2210 x 3190 mm | ||
| Working height | 28.3m | ||
| Working radius | 22m | ||
| Boom | form | 7-speed hexagonal high strength steel plate boom | |
| Withdrawal Method | 1 hydraulic cylinder 6-stage chain linkage | ||
| Boom turn | Driving method | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | 355º finite rotation | ||
| Bucket | material | aluminum | |
| Size (L x W x H) | 958 x 1,878 x 1,105 mm (External reference when expanded) | ||
| Rotation angle | 360° | ||
| Rotation method | Electric motor Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance method | Hydraulic cylinder driven automatic horizontal system | ||
| Load | 400kg | ||
| Outrigger | main | form | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | 6,760 mm | ||
| After room | form | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | 6,760 mm | ||
| Type of working flow | ISO VG #46 | ||
| safety device |
Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device |
||
| Basic specification |
Wireless Remote Control, Work Light, Hydraulic Emergency Main-Rear Outrigger, PTO, remote start / stop, RPM remote accelerator, Boom Home Positioning, inverter |
||
Working radius ※ The above specifications are subject to change without prior notice.
