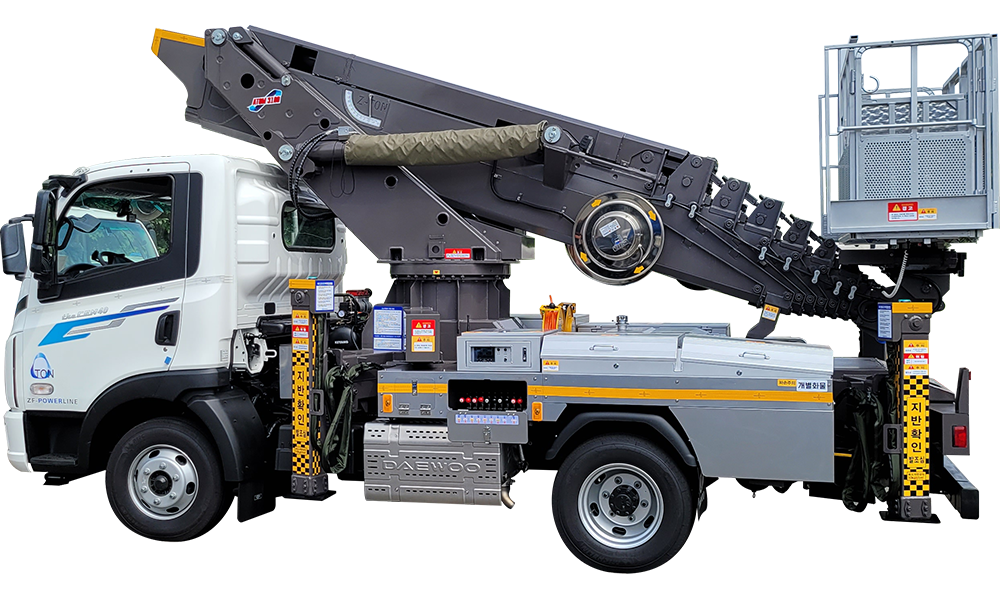

ZTON 310D ZTON 200N TATA DAEWOO 4 Ton 31 Meters
WE ARE ONE! Satisfaction of Faith, ZTON GROUP is one with our customers.
Equipment description
Maximum working height of 31.1M exceeded the limit of 4tons.
It is designed and built to handle any work required in urban areas.
You can work more conveniently by applying an expandable aluminum boarding box.
- 4ton highest working capacity
- Maximum working radius by applying front and rear X-shaped outriggers
- KG 400KG certified load rating, minimizing boom deflection during maximum rear work
- No outrigger torsion and bending during maximum side work(All specifications are outrigger maximum withdrawal conditions)
- Improve fuel economy, reduce vehicle maintenance costs, maximize engine performance with excellent pitching capability! (ZF 8 speed automatic transmission)

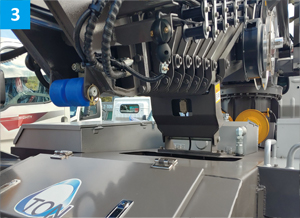

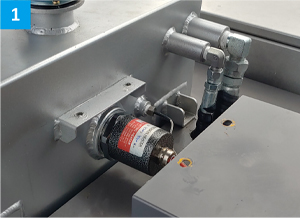

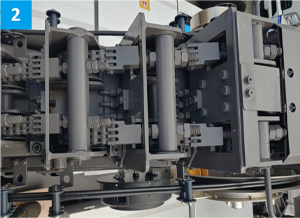

Key Features ※ The following specifications are subject to change without prior notice for performance improvement.
Automatic hydraulic heating system, winter oil preheating function
Securing stability by applying boom in/out pull chain method
Boom automatic containment system (Automatic origin return system)
Automatic Transmission Controller
Improved coating quality by introducing electrodeposition coating
Boom 8-speed linked out
Direct connection type PTO
※No drive shaft!
Specification Table ※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Specification | ||
|---|---|---|---|
| model name | ZTON 310D | ||
| Applicable Vehicle | TATA DAEWOO Commercial vehicle the cen 4ton | ||

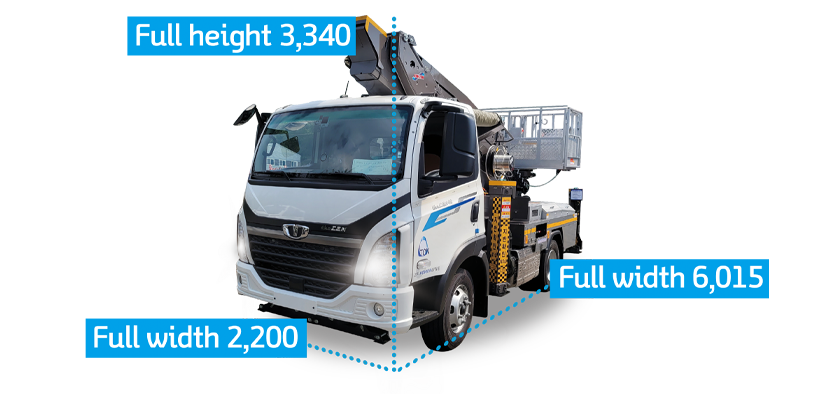

| Body size (L x W x H) | 6,015 x 2,200 x 3,340 (mm) | ||
| Working height | 31.1 m | ||
| Working radius | 23.5 m | ||
| Boom | form | 8-layer hexagonal high-tension steel plate | |
| Withdrawal Method | 1 Hydraulic cylinder chain interlocking method | ||
| Boom turn | Driving method | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | 360º finite rotation | ||
| Bucket | material | aluminum | |
| Size (L x W x H) | 1,802 X 774 X 1,125 (mm) (Outside reference) | ||
| Rotation angle | 360° | ||
| Rotation method | Electric Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance method | Hydraulic cylinder driven automatic horizontal system | ||
| Load | 400kg | ||
| Outrigger | main | form | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | 6,949 (mm) | ||
| After room | form | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | 6,949 (mm) | ||
| Type of working flow | ISO VG 46 | ||
| safety device |
Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device |
||
| Basic specification |
Wireless Remote Control, Work Light, Hydraulic Emergency Main-Rear Outrigger, PTO, remote start / stop, RPM remote accelerator, Boom Home Positioning. inverter. |
||

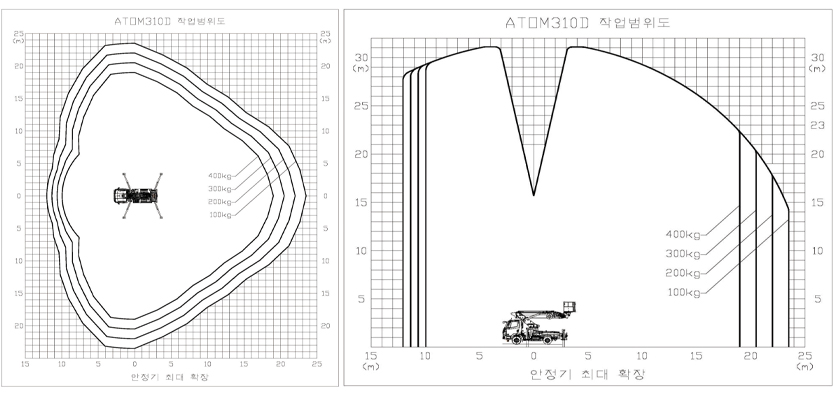

Working radius ※ The above specifications are subject to change without prior notice.
