ATOM 290WKia 3.5Ton 29Meters
WE ARE ONE! Satisfaction of Faith, Zitton Group is one with our customers.
Product picture
Equipment description
It is the best equipment that reflects customer's NEEDS with optimized equipment for the city.
It is designed and manufactured to handle any work required in the urban area.
expandable aluminum cabins make your work easier.
- 3.5ton highest working capacity, low profile model capable of passing 3 meters
- Maximum working radius by applying front and rear X-shaped outriggers
- KG 400KG certified load rating, minimizing boom deflection during maximum rear work
- Disk brake application, 8.5 ton gross weight upgrade
- No outrigger torsion and bending during maximum side work (All specifications are outrigger maximum withdrawal conditions)
video
Key Features※The following specifications are subject to change without prior notice for performance improvement.
Bucket (New Signbosrd type Full Aluminium)
Basic type
Extended type
Specification Table※ The above specifications are subject to change without prior notice for performance improvement.
| Item | Specification | ||
|---|---|---|---|
| model name | ATOM 290W | ||
| Applicable Vehicle | Hyundai Might Wide 3.5 Ton | ||
| Body size (L x W x H) | 5,845 x 2,180 x 3,000 (mm) | ||
| Working height | 28.3 m | ||
| Working radius | 22 m (100kg) | ||
| Boom | form | 7-speed hexagonal high strength steel plate boom | |
| Withdrawal Method | 1 hydraulic cylinder 6-stage chain linkage | ||
| Boom turn | Driving method | Hydraulic Motor Drive, Worm-Plated Deceleration | |
| Rotation angle | 360º finite rotation | ||
| Bucket | material | aluminum | |
| Size (L x W x H) | 640 X 1,655 X 1,040 (mm) (External reference when expanded) | ||
| Rotation angle | 360° | ||
| Rotation method | Hydraulic Motor Drive, Worm Gear Deceleration | ||
| Horizontal maintenance method | Hydraulic cylinder driven automatic horizontal system | ||
| Load | 400kg (2 workers + tool) | ||
| Outrigger | main | form | Horizontal vertical hydraulic draw-out, X-shaped |
| Extension | 6,550 (mm) | ||
| After room | form | Horizontal vertical hydraulic draw-out, X-shaped | |
| Extension | 6,550 (mm) | ||
| Type of working flow | ISO VG #46 | ||
| safety device |
Relief valve, counterbalance valve, proportional control valve, Bucket safety angle control valve, pilot check valve, vehicle rollover prevention device |
||
| Basic specification |
Wireless Remote Control, Work Light, Hydraulic Emergency Main-Rear Outrigger, PTO, remote start / stop, RPM remote accelerator, Boom Home Positioning, inverter |
||

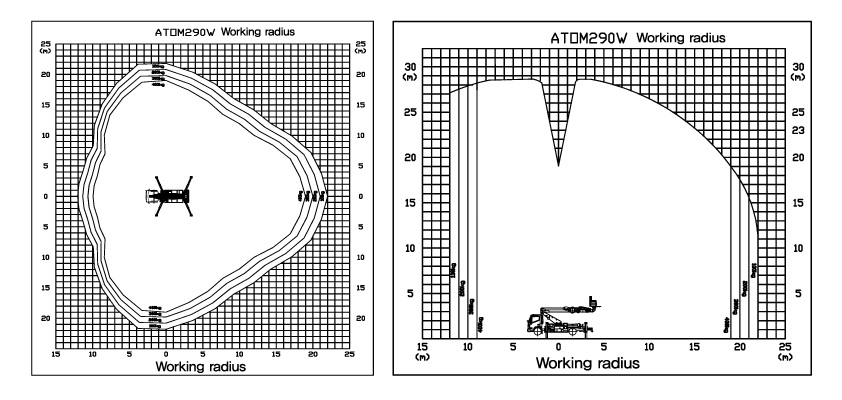

Working radius ※ The above specifications are subject to change without prior notice.

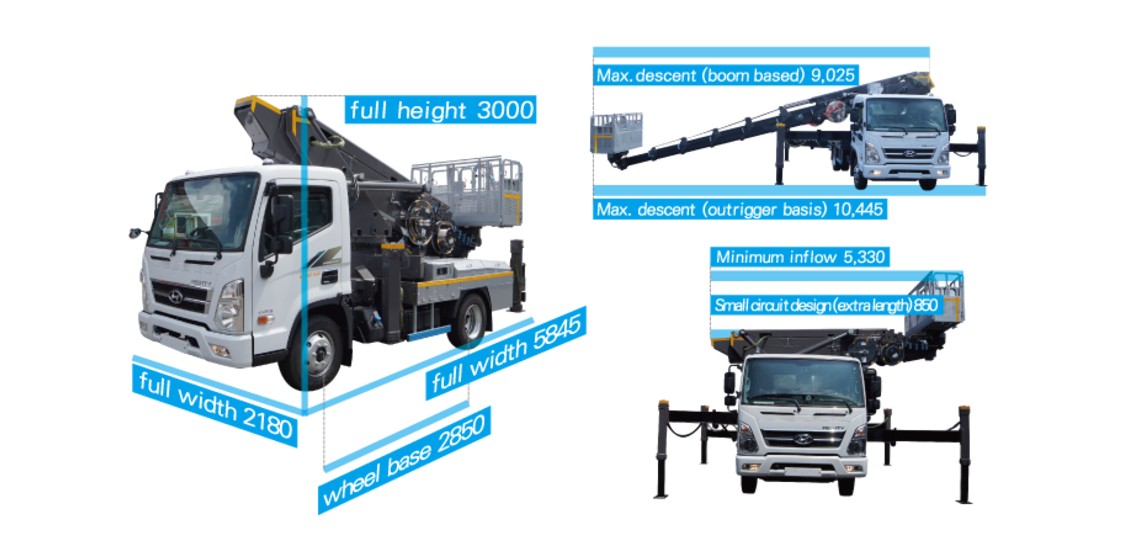

Product Specification
